SPGA Series
EMI / RFI Filters
Super Performance General Application Line Filter
Specifications
| Voltage rating: | 115/250 VAC |
|---|---|
| Line frequency: | 50/60 Hz |
| Leakage current (line to ground):* | 0.50 mA maximum at 115 V, 60 Hz 1.00 mA maximum at 250 V, 50 Hz |
| Test Voltage: | Line to ground, 2250 VDC Line to line, 1450 VDC |
| OverCurrent Test: | 6X rated for 8 sec. |
| Insulation: | 6000megohms/100VDC Resisance |
*Low leakage current models (<0.5mA@250VAC / 50Hz) may be ordered by adding the prefix “L”, e.g. LSPGA1B-3.
Applications
The super-performance, general application filters (SPGA series) have significantly higher low frequency performance than the standard GA series. These filters are designed to pro- vide greater reduction of conducted noise below 1MHz.
Certifications
UL File No. E62459, CSA File No. LR56661.
TUV File No. R72170756 for SPGA8B-10 & LSGPA8B-10 only.

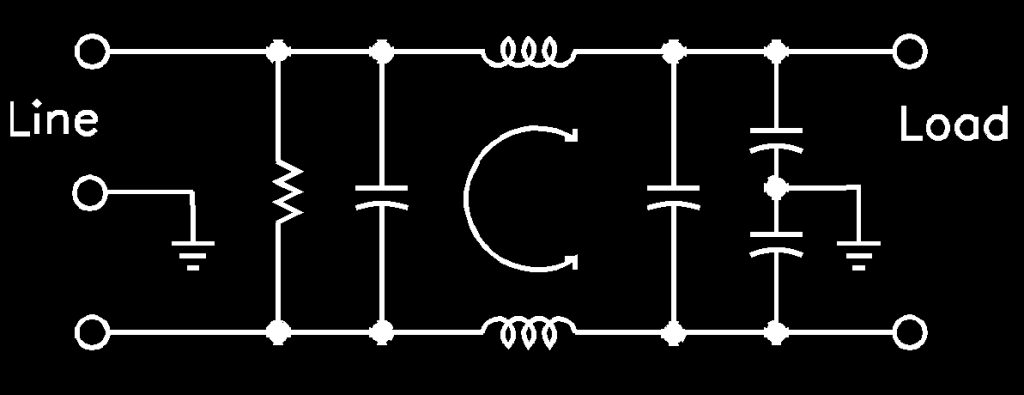

Electrical Schematics
How To Define A Part Number
| Series | Case Style | Schematic | - | Current Rating |
|---|---|---|---|---|
| SPGA | 1 | B | - | 3 |
Performance
| Current Rating | Frequency (MHz) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Common Mode | 0.01 | 0.02 | 0.05 | 0.10 | 0.15 | 0.50 | 1 | 5 | 10 | 20 | 30 |
| 3A | 4 | 8 | 18 | 25 | 29 | 43 | 44 | 42 | 42 | 38 | 30(dB) |
| 6A | 4 | 8 | 18 | 25 | 29 | 43 | 44 | 42 | 42 | 38 | 30(dB) |
| 10A | 4 | 8 | 18 | 25 | 29 | 43 | 44 | 42 | 42 | 38 | 30(dB) |
| Differential Mode | |||||||||||
| 3A | 1 | 1 | 2 | 10 | 25 | 59 | 65 | 62 | 40 | 40 | 40(dB) |
| 6A | 1 | 1 | 2 | 10 | 25 | 59 | 65 | 62 | 40 | 40 | 40(dB) |
| 10A | 1 | 1 | 2 | 10 | 25 | 59 | 65 | 62 | 40 | 40 | 40(dB) |
Minimum insertion loss in 50 ohm system per MIL-STD-220A.
Ordering Information
| Current Rating | Part Number | Dimensions (mm) | ||||
|---|---|---|---|---|---|---|
| A | B | C | D | E | ||
| 3A | SPGA1B-3 | 63.50 | 50.80 | 28.70 | 74.68 | 84.32 |
| SPGA2B-3 | 63.50 | 50.80 | 28.70 | 74.68 | 84.32 | |
| SPGA3B-3 | 63.50 | 50.80 | 28.70 | 74.68 | 84.32 | |
| SPGA7B-3* | 63.50 | 50.80 | 38.10 | 40.00 | 16.00 | |
| SPGA8B-3* | 63.50 | 50.80 | 38.10 | 40.00 | 16.00 | |
| 6A | SPGA1B-6 | 76.20 | 55.63 | 31.75 | 87.12 | 96.52 |
| SPGA2B-6 | 76.20 | 55.63 | 31.75 | 87.12 | 96.52 | |
| SPGA3B-6 | 76.20 | 55.63 | 31.75 | 87.12 | 96.52 | |
| SPGA7B-6* | 76.20 | 55.63 | 44.45 | 40.00 | 16.00 | |
| SPGA8B-6* | 76.20 | 55.63 | 44.45 | 40.00 | 16.00 | |
| 10A | SPGA1B-10 | 92.20 | 55.63 | 44.45 | 103.12 | 112.78 |
| SPGA2B-10 | 92.20 | 55.63 | 44.45 | 103.12 | 112.78 | |
| SPGA3B-10 | 92.20 | 55.63 | 44.45 | 103.12 | 112.78 | |
| SPGA7B-10* | 92.20 | 55.63 | 44.45 | 40.00 | 16.00 | |
| SPGA8B-10* | 92.20 | 55.63 | 44.45 | 40.00 | 16.00 | |
*To designate metric versions, add the letter “M” after the letter B, eg: SPGA7BM-6 Connections are 0.250 Tab Terminals which extend 14.73mm.
18-Gauge wire leades extend 107.95mm
Mounting Hole Diameters are 4.78mm

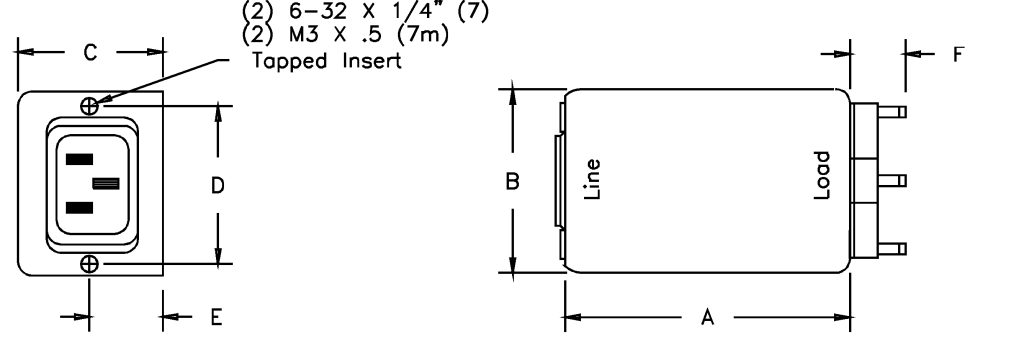

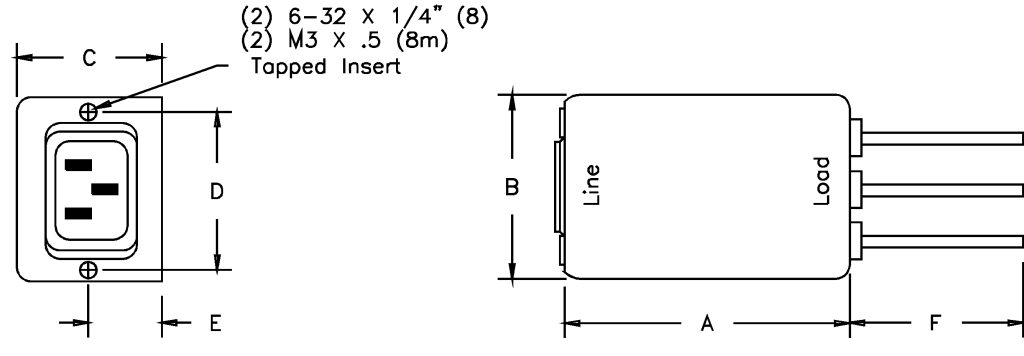

Case Styles
Style 1
Style 2
Style 3
Style 7 / 7M (Metric)
Style 8 / 8M (Metric)

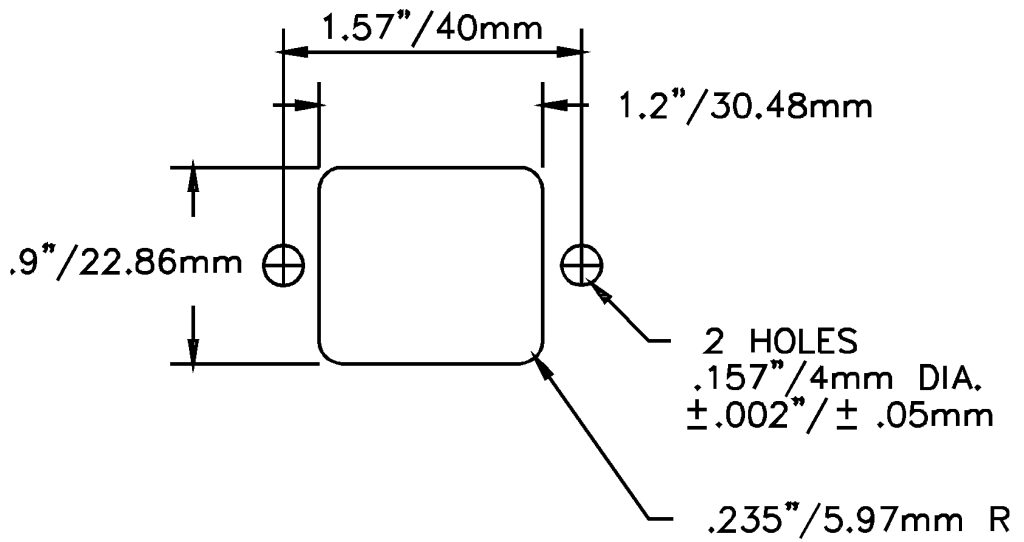

Panel Cut-Out
Specifications subject to change.
