Power Supplies

SAE Power offers standard high reliability, feature-rich AC/DC or DC/DC power supplies. These products are available in power ranges from 25W to 16.8KW. With over 40 years of experience, you can rest assured that these models will offer you a high quality, cost-effective solution for your power needs. As with our custom solutions, many of these models have field-demonstrated reliability of more than 1,500,000 hours.

At SAE Power, we strive to deliver the most precise magnetics in the industry to fit your individual needs, no matter how demanding your technical specifications. Our worldwide procurement expertise and manufacturing excellence assure our customers that their product will be delivered on time, every time.

Universal AC Input

GENERAL PURPOSE AC/DC POWER SUPPLIES / 230-600W
Single Output Modules

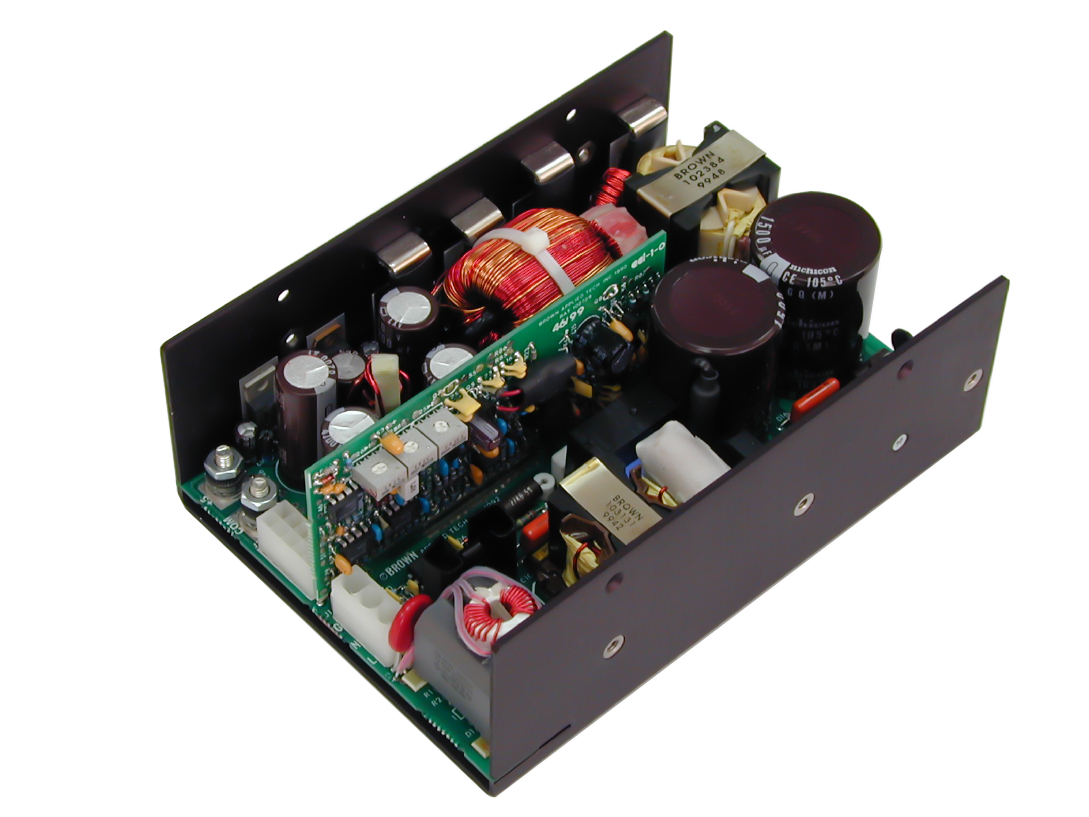

PS50 Series
110-350 Watts
ModelInputOutput VDCOutput CurrentPower
PS50.004SUniversal AC+2.5V43A110W
PS50.005SUniversal AC+3.3V43A140W
PS50.006SUniversal AC+5V43A220W
PS50.007SUniversal AC+12V30A360W
PS50.008SUniversal AC+24V15A360W
PS50.009SUniversal AC+48V7.5A360W
PS50.010SUniversal AC+54V6.5A350W

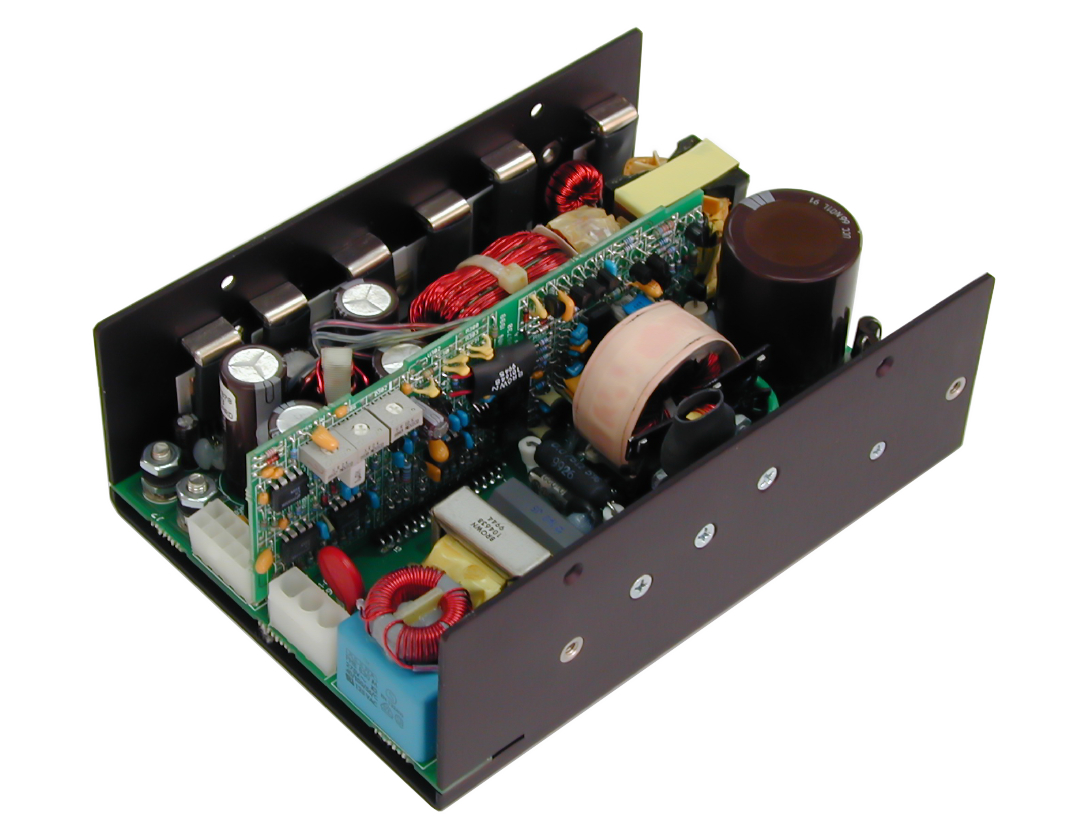

PS79 Series
110-350 Watts
ModelInputOutput VDCOutput CurrentPower
PS79.004SUniversal AC+2.5V60A150W
PS79.005SUniversal AC+3.3V60A200W
PS79.006SUniversal AC+5V60A300W
PS79.007SUniversal AC+12V30A360W
PS79.008SUniversal AC+24V15A360W
PS79.009SUniversal AC+48V7.5A360W
PS79.010SUniversal AC+54V6.5A350W
Dual Output Modules
PS50 SerieS
265-375 Watts
ModelInputOutput VDCOutput CurrentPower
PS50.011DUniversal AC+5V43A290W
5V15A
PS50.012DUniversal AC+12V30A375W
12V1A
PS50.013DUniversal AC+5V43A265W
+3.3V15A
PS79 SerieS
350-375 Watts
ModelInputOutput VDCOutput CurrentPower
PS79.011DUniversal AC+5V60A375W
5V15A
PS79.012DUniversal AC+12V30A375W
12V1A
PS79.013DUniversal AC+5V60A350W
+3.3V15A
Triple Output Modules
PS50 SerieS
165-335 Watts
ModelInputOutput VDCOutput CurrentPower
PS50.014TUniversal AC+3.3V43A230W
+5V15A
+12V1A
PS50.015TUniversal AC5V43A325W
+12V15A
12V1A
PS50.016TUniversal AC+2.5V43A165W
+3.3V15A
+5V1A
PS50.016TUniversal AC+3.3V43A335W
+12V15A
12V1A
PS79 SerieS
225-360 Watts
ModelInputOutput VDCOutput CurrentPower
PS79.014TUniversal AC+3.3V60A310W
+5V20A
+12V1A
PS79.015TUniversal AC5V60A360W
+12V4A
12V1A
PS79.016TUniversal AC+2.5V60A225W
+3.3V20A
+5V1A
PS79.016TUniversal AC+3.3V60A310W
+12V8A
12V1A
Quad Output Modules
PS50 Series
175-335 WATTS
ModelInputOutput VDCOutput CurrentPower
PS50.017QUniversal AC+5V43A290W
+3.3V15A
+12V1A
12V1A
PS50.018QUniversal AC+5V43A335W
+12V10A
12V1A
5V1A
PS50.019QUniversal AC+2.5V43A175W
+3.3V15A
12V1A
5V1A
PS79 Series
275-340 WATTS
ModelInputOutput VDCOutput CurrentPower
PS79.017QUniversal AC+5V50A340W
+3.3V20A
+12V1A
12V1A
PS79.018QUniversal AC+5V50A300W
+12V3A
12V1A
5V1A
PS79.019QUniversal AC+2.5V60A275W
+3.3V20A
12V1A
5V1A

DC Input

Single Output Modules

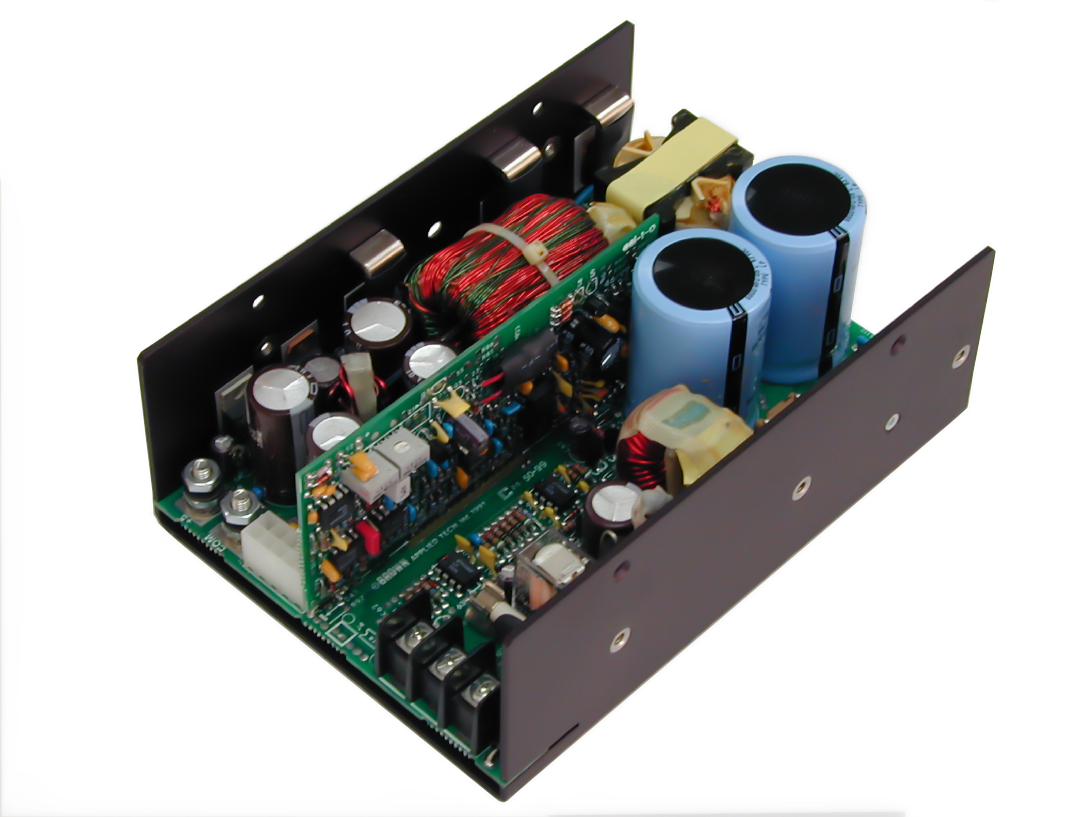

PS62 Series
ModelInputOutput VDCOutput CurrentPower
PS62.003S-48VDC or -60VDC+2.5V60A150W
PS62.004S-48VDC or -60VDC+3.3V60A200W
PS62.005S-48VDC or -60VDC5V60A300W
PS62.006S-48VDC or -60VDC12V30A360W
PS62.007S-48VDC or -60VDC24V150A360W
Dual Output Modules
PS62 Series
ModelInputOutput VDCOutput CurrentPower
PS62.008D-48VDC or -60VDC+5V60A375W
5V15A
PS62.009D-48VDC or -60VDC+12V30A375W
12V1A
PS62.010D-48VDC or -60VDC+5V60A350W
+3.3V15A
Triple Output Modules
PS62 Series
ModelInputOutput VDCOutput CurrentPower
PS62.011T-48VDC or -60VDC+3.3V60A370W
+5V15A
+12V8A
PS62.012T-48VDC or -60VDC+5V60A375W
+ 12V4A
12V2A
PS62.013T-48VDC or -60VDC+2.5V60A250W
+3.3V15A
5V10A
PS62.014T-48VDC or -60VDC+3.3V60A370W
+12V8A
12V6A
Quad Output Modules
PS62 Series
ModelInputOutput VDCOutput CurrentPower
PS62.015Q-48VDC or -60VDC+5V60A375W
+33V15A
+12V1A
12V1A
PS62.016Q-48VDC or -60VDC+5V60A375W
+12V3A
12V2A
5V3A
PS62.017Q-48VDC or -60VDC+2.55V60A315W
+3.3V20A
12V10A
5V3A

1U / 3U Power Systems

Front End Power Modules
1U High Hot-Swap / Redundant Power Shelves
800-2100 Watts
ModelPowerInput RangeOutputModule Dimensions

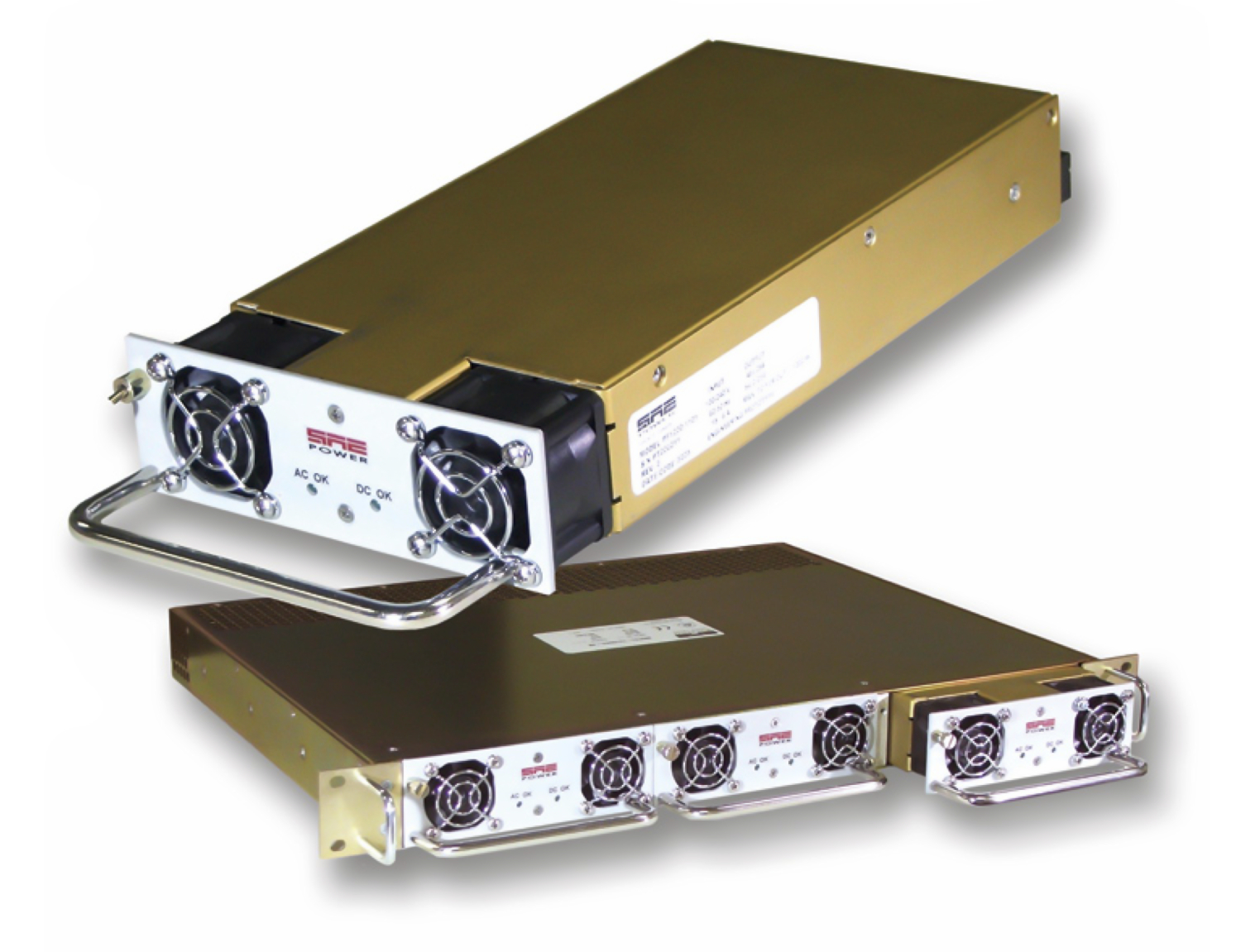

PF600600WFull Power 90-264 VAC12VDC10.25 x 4.83 x 1.60″
PF800800WFull Power 90-264 VAC24 or 48VDC10.25 x 4.83 x 1.60″
PF10001000WFull Power 90-264 VAC24, 28 or 48VDC10.25 x 4.83 x 1.60″
PF12001200WFull Power 90-264 VAC24 or 48VDC10.25 x 4.83 x 1.60″
PF15001500WFull Power 180-264 VAC48VDC10.25 x 4.83 x 1.60″

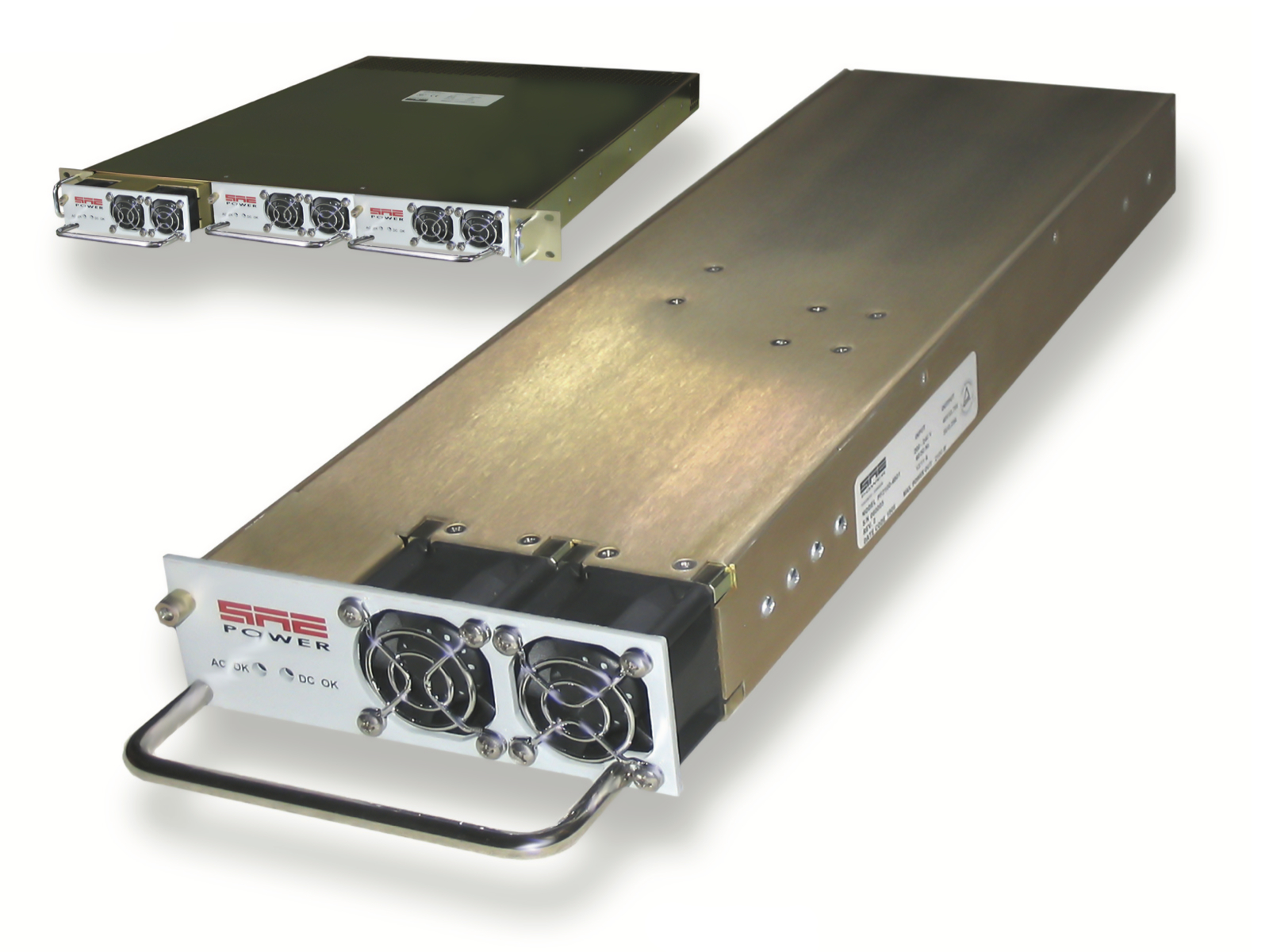

PF18001800WFull Power 180-264 VAC48VDC15.60 x 4.83 x 1.60″
PF21002100WFull Power 180-264 VAC48VDC15.60 x 4.83 x 1.60″
PF25002500WFull Power 180-264 VAC48VDC15.60 x 4.83 x 1.60″

SAE Power’s new 1U/3U Power System Series represents the next generation in medium to large power solutions. These self-cooled 19″ or 23″ sub-racks in either 1U or 3U high profiles are highly reliable front ends for distributed and battery backed systems. Power modules are available from 800W to 2100W for a total power availability of 16.8KW. It comes with an I2C Serial Data Bus, an Aux output, and control/ monitoring signals.

Our system meets IPMI Signal/Control requirements and is compliant with SSI PSM (Power Supply Management) interface standard. This system provides the flexibility and scalability that companies need in order to meet their market demands.

  • 12 / 24 / 28 / 48 VDC Outputs
  • Analog & 12C Status & Control
  • 3-Bay / 1U Racks from 1.8-7.5kW
  • 9-Bay / 3U Racks from 5.4-22.5kW
  • cTUVus EN60950 Approvals
  • CE Mark (LVD)
  • RoHS Compliant

Power Shelves

1U High Hot-Swap
Redundant Power Shelves
2400-6300W
ModelPowerMating ModulesShelf Dimensions
1U100SB1.8 - 4.5kWPF800 / PF1200 / PF150017.00 x 14.60 x 1.72"
1U150LA7.5WPF1800 / PF2100 / PF250017.00 x 20.04 x 1.72"
  • 1.8 – 7.5kW 1U / 19″ Rack Mount Chassis
  • Analog & 12C Status & Control
  • cTUVus EN60950 Approvals
  • CE Mark (LVD)
  • RoHS Compliant

*Ask about our 3U High Racks offering 7.2-18.9kW of Power

Power Factor Correction

Universal AC or Wide Range DC Inputs

Dual AC & DC Input Capabilities

Leading Edge Power Densities

Fast & Efficient Magnetic Amplifiers

Current Mode Control

Custom Power

SAE Power offers design, application and specification assistance in selecting an appropriate standard, modified standard or full custom solution.

This draws on our broad experience and proven families of topologies from a few watts to several kilowatts.

High Frequency Resonant Conversion

Hot Plug Redundant Current Sharing Systems

Specialized Monitoring / Control Interfaces

TS/ISO-16949/2002 Registered

ISO-9001/2000 Registered

ITAR Approved for Military / Aerospace

Advanced Engineering

SAE Power has deep expertise in providing customers technical assistance for the design and development of their products. Our areas of expertise include:

  • High-Frequency Power Electronics (50KHz to >1MHz)
  • Topologies & Applications incorporating quasi- and fully-resonant designs
  • Adaptive Synchronous Rectification
  • Hot-Plug, OR-ing, Current Sharing, Redundant Operation
  • Careful Component Selection & Derating
  • Magnetic Devices
  • Filters
  • Embedded Microprocessors
  • Supported by ATE Design & Programming
  • Covering a few Watts to beyond 3 KiloWatts

It is often that SAE Powermay be asked to design totally unique and highly successful solutions tailored to specialized applications. A strong track record in producing reliable, commercially successful products for demanding applications requiring a high “engineering value added” for “blue chip” customers.

All products manufactured by SAE Power ship direct from our location to our customers, or, if required, drop shipments can be arranged. All manufacturing processes are documented, with design and process reviews for all affected operations prior to production. SAE Power also has formalized and documented preventative maintenance programs, along with an ongoing commitment to improve set up times through evaluation and analysis or practices, processes, equipment modification, and planning.

Quality & Safety

SAE Power meets or exceeds industry standards for Quality Assurance and Product Safety.

  • RoHS
  • IATF 16949:2016
  • AS 9100 D
  • ISO 9001:2015
  • CGP / ITAR

Click the checkbox for more information about our Quality Certifications & Awards for Supplier Excellence.

Manufacturing

  • Fuji NXT equipment at our N. American factory
  • Automated epoxy and paste dispensing system
  • Burn-In & Temperature Cycling Rooms / Chambers
  • Auto Test, RF Test Capabilities & ICT
  • Secured / Bonded Areas for Inventory
  • Climate Controlled Environment
  • Fire & Theft Protected Facilities
